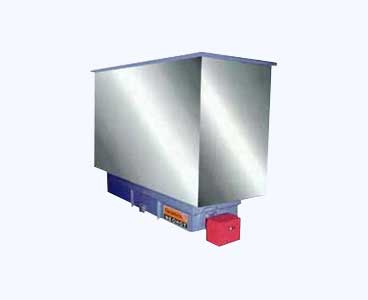

Tank Heating System
Tank Heating System
Salient Features :
- ❱ Energy Efficient
- ❱ Fully automatic operation
- ❱ Low fuel consumption
- ❱ S.S. heat exchanger
- ❱ Higher Production rates
- ❱ Better control on Heating temperature
- ❱ Reduction in initial heat up time
- ❱ Reduction in Electricity cost
- ❱ Imported ITALIAN 'RIELLO' Burner
- ❱ 100% safe
- ❱ Extra space is not required
- - We, Neotech have specially designed our Tank Heating System for Pretreatment Tank heating in Powder Coating Industries.
- - Used by M/s. Siemens Ltd. & M/s. Larsen & Toubro Ltd. Vendors.
- - Prominently installed in leading Power Coating Industries.
Technical Specifications :
| DETAILS | UNITS | NEOHOT - 25 | NEOHOT - 35 | NEOHOT - 50 |
| Tank Capcity | Ltrs | 2500 | 3500 | 5000 |
| Temperature required | °C | 75 | 75 | 75 |
Fuel Consumption to for initial heating |
||||
| a) Diesel | Ltr / hr | 10.0 | 10.35 | 10.0 |
| b) LPG | Kg / hr | 7.5 | 8.0 | 7.5 |
| c) Natural Gas | Nm³ / hr | 9.75 | 10.25 | 9.75 |
| Initial heat up time | Hrs | 1.5 | 2 | 3 |
| Burner Control | ---- | ------------On-Off---------- | ||
| Electric Supply | V | AC - Single Phase 230V ± 5% 50 Hz | ||
| Connected electrical Load | W | 250 | 250 | 250 |
| Fuel Gas outlet | mm | 150Ø | 150Ø | 150Ø |
- ❱ Calorific Value of Diesel (H.S.D.) = 10,400 Kcals / Kg
- ❱ Calorific Value of L.P.G. = 11,200 Kcals / Kg
- ❱ Calorific Value of Natural Gas = 8,600 Kcals / Nm3
